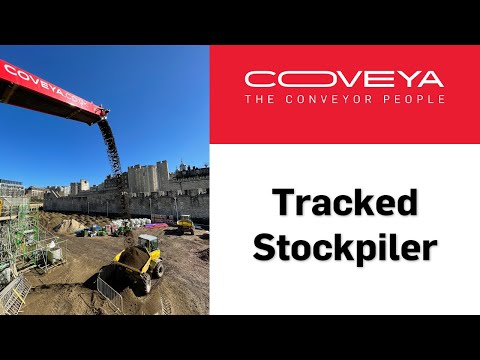

Tracked Stockpiler Conveyor

Available for hire

Available for sale

Discover the Coveya Tracked Stockpiler Conveyor, a robust solution designed for optimal stockpiling and handling of high volumes of bulk materials. Well suited to receiving materials from existing outfeed belts and stockpiling it can also be directly loaded from excavators to cross areas which normal plant would not be able to access.

Length: 18m - 24m

Belt Width: 1000mm, 900mm

Max Throughput: 300 TPH

Enquire About Product Talk to an Expert

Information overview about product

The Tracked Stockpiler Conveyor is engineered to handle large volumes of materials efficiently. Available in lengths of 18m, 24m and 30m, this conveyor is perfect for stockpiling materials from directly from crushing and screening units or from excavators with smaller attachments. Due to its extended reach, it can also be used to span large areas which other plant would not be able to access.

The Tracked Stockpiler Conveyor can be customised to meet specific project requirements. This adaptability ensures that the system can be tailored to fit the exact needs of your application, whether you need a particular length, width or material handling capacity.

Reduced operating cost.
Increased stockpile capacity.
Reduces on site material handling.
Improved efficiency and safety.
Reduced maintenance.
Environmentally friendly.
Containerised for global shipping.

Additional information

Belt Speed	0.3 – 1.2m/p/s
Belt Width	1000mm, 900mm
Hopper Size (if used)	1m x 1.2m
Length	18m – 24m
Loading Method	Excavator, Hand, Small machine
Max Throughput	300 TPH
Mobile or Static	Mobile, Tracked Mobile
Power Supply	Diesel/ Hydraulic Motor Drive
Type of Material	Aggregate, Bulk materials, Recyclables

Coveya Brochures Downloads

View All Downloads

Tracked Stockpiler Downloads

View All Downloads

What Support is Included?

At Coveya, we offer a range of support services for both hire and purchase customers. Below, you’ll find a simple breakdown of what each option includes, so you can choose the right level of support for your project.

Talk to an Expert

Service Type	Rental Support	Sales Support
Full Installation – We take care of on-site installation so you’re set up and ready
Maintenance Options – We can offer the right servicing and maintenance for you
Dedicated Service Team – Our dedicated service team is here to help with any conveyor issues when you need us
Scheduled Servicing – We’ll schedule on-site service visits every four weeks, and maintenance during downtime
Spare Parts – Extensive spare parts stock and unmatched lead times to keep you moving

Enquire About This Product

Got a question or looking for a quote? Send us a quick message using the form below — our team will get back to you as soon as possible.

This field is for validation purposes and should be left unchanged.

Name(Required)

Company Name(Required)

Location(Required)

Phone Number(Required)

Email(Required)

Hire or Purchase(Required)

What can we help you with?(Required)

This field is hidden when viewing the form

Product

Key Features of the Tracked Stockpiler Conveyor

Designed for high-capacity bulk handling, this tracked conveyor features adjustable speeds, wide belts, independent diesel power and various length configurations to facilitate faster and safer movement of materials.

Belt Widths

Up to 1000mm wide.
Adjustable Belt Speeds

Up to 2.0m/s.
Total Lengths

Range from 18m, 24m and 30m.
High Throughput

Rates of up to 300 tons per hour.
Independent Power

Diesel 2.2L engine.
Wide Application

Suitable for general bulk material handling.
